ELECTROJET^TM TURN-KEY ADDITIVE MANUFACTURING SYSTEMS - MULTI-LAYER PCB PRINTING FOR ELECTRONICS

INTRODUCING NEW POSSIBILITIES IN COMMERCIAL PCB PRODUCTION

Multi-layered additive manufacturing with unequalled Bulk silver conductivity is now within reach! DoMicro is proud European distributor of the revolutionary ElectroJet^TM materials and printers by ChemCubed. This inkjet printing platform offers the unique combination of ready-to-use material testing, rapid prototyping and a fully capable production system.

BENEFITS

• Fast prototyping: flexibility to design, prototype and produce compatible with the majority of digitally printed electronic applications, keeping your IP safe.
• Performance: multi-layer capabilities & bulk silver conductive inks for unparalleled high performance.
• Sustainable: digital additive manufacturing inkjet printing process replaces multiple conventional production steps by depositing only the required material, significantly reducing circuit dimensions.

MULTI-MATERIAL, MULTI-LAYER CAPABILITIES

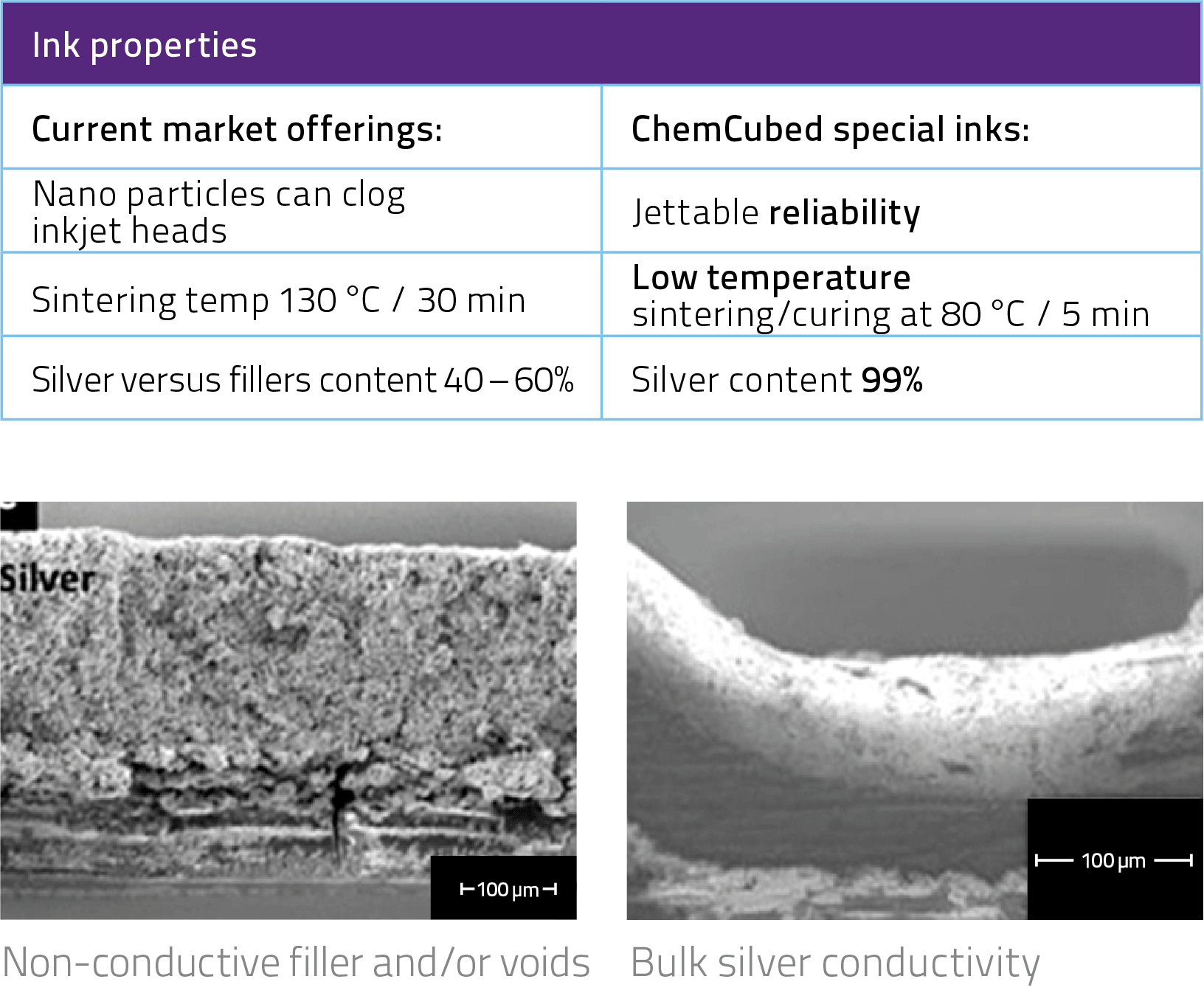

ElectroJetTM equipment and inks enable digital printing of advanced particle-free silver conductive inks and UV-curable dielectric insulating/building inks on low temperature. The platform features inline LED UV curing and inline heat sintering. Capabilities of the inkjet printed conductive inks match traditional etched PCB’s, thus providing a more sustainable match with current applications.

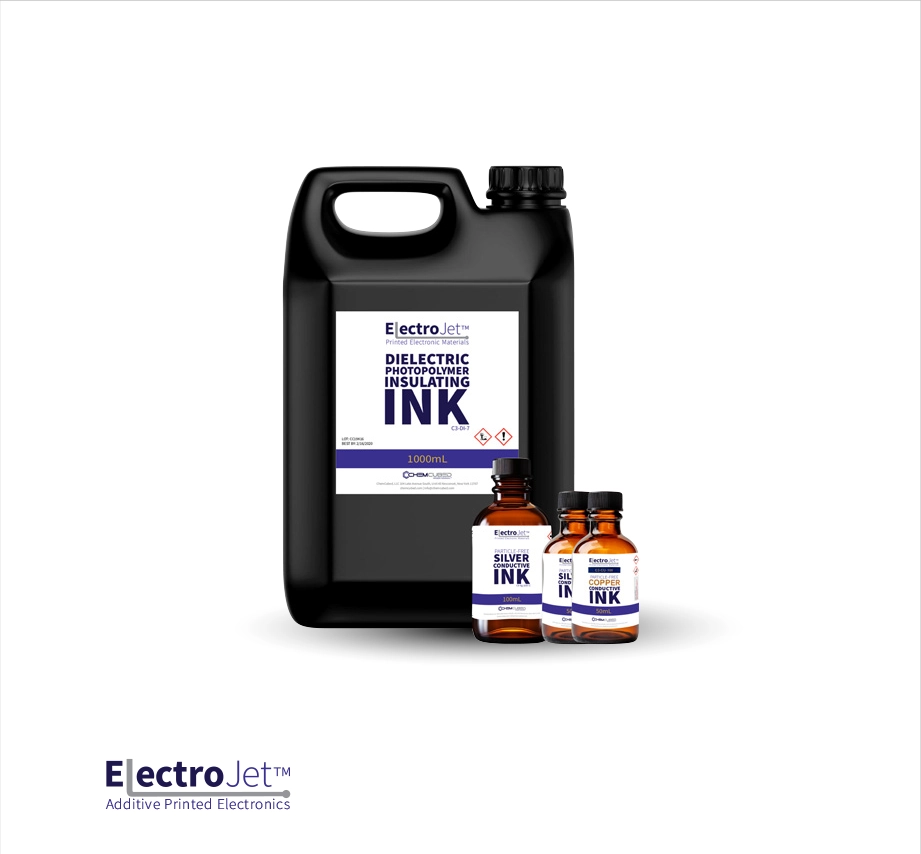

SPECIALIZED FUNCTIONAL INKS

Founded on decades of experience in developing functional inks, ChemCubed has an extensive materials range tailored for demanding electronic applications.

State-of-the-art: nanocomposite dielectric material that:

• insulates layers between the circuits
• masks material for soldering
• supports at connection points; thereby allowing it to replace F board for two-sided boards

Discover more on www.chemcubed.com/electrojet-materials
